Front Heat Duct Removal/Installation: Driver-side

  1. Remove the driver-side side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
  2. Insert a flathead screwdriver in the position shown in the figure, lift it up in the direction of the arrow.

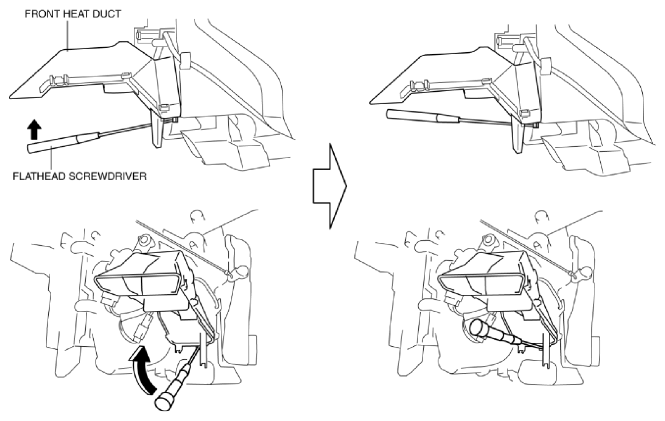

    Fig 1: Lifting Up Front Heat Duct - Driver-Side
    G10986591Courtesy of MAZDA MOTORS CORP.
  3. Detach the tab while lifting up the front heat duct in the direction of the arrow.

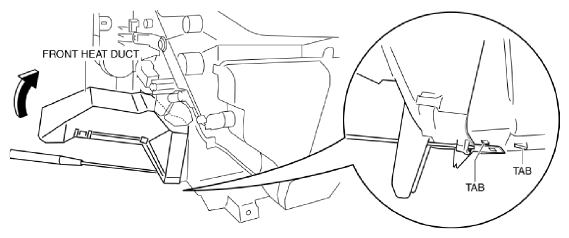

    Fig 2: Detaching Front Heat Duct Tab - Driver-Side
    G10986592Courtesy of MAZDA MOTORS CORP.
  4. Remove the front heat duct.

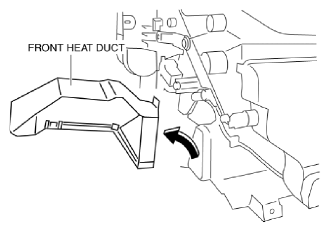

    Fig 3: Removing Front Heat Duct - Driver-Side
    G10986593Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
