Drain Hose Installation Note
Drain Hose Installation Note
Install the clip as shown in the figure.

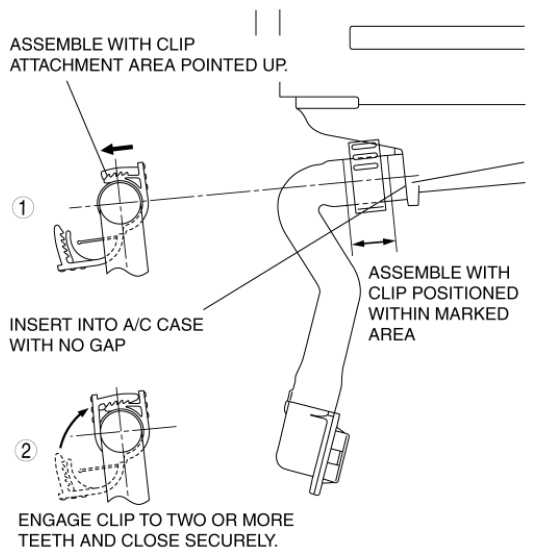

Fig 1: Identifying Drain Hose Clip Installation Position
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
