DTC B1044 01: Auto Leveling Sensor Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1044:01 (ADAPTIVE FRONT LIGHTING SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Auto leveling sensor circuit malfunction |
| Detection condition |
- AFS control module detected the auto leveling sensor circuit voltage of 0.25 V or less
or 4.75 V or more
for 10 s or more
with the ignition switched ON (engine off or on).
|
| Fail-safe function |
- The swivel actuator is moved to the center.
- The headlight leveling actuator is stopped at the position when the malfunction is determined.
|
| Possible cause |
- Auto leveling sensor connector or terminal malfunction
- AFS control module connector or terminal malfunction

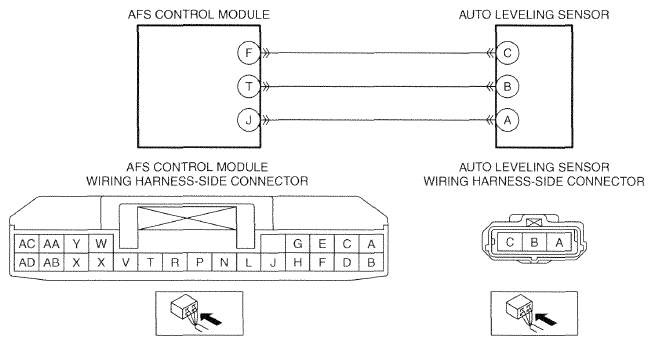

- Short to ground in wiring harness between the following terminals:
- AFS control module terminal F-Auto leveling sensor terminal C
- AFS control module terminal T-Auto leveling sensor terminal B
- AFS control module terminal J-Auto leveling sensor terminal A
- Short to power supply in wiring harness between the following terminals:
- AFS control module terminal F-Auto leveling sensor terminal C
- AFS control module terminal T-Auto leveling sensor terminal B
- AFS control module terminal J-Auto leveling sensor terminal A
- Open circuit in wiring harness between the following terminals:
- AFS control module terminal F-Auto leveling sensor terminal C
- AFS control module terminal T-Auto leveling sensor terminal B
- AFS control module terminal J-Auto leveling sensor terminal A
- Auto leveling sensor malfunction
- AFS control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
