No. 1 Engine Mount Rubber, Front Crossmember Component Removal Note

  1. Disconnect the service plug. (Vehicle with i-ELOOP) (See SERVICE PLUG DISCONNECTION/CONNECTION [I-ELOOP] .)
  2. Disconnect the generator terminal B cable. (Vehicle with i-ELOOP) (See GENERATOR REMOVAL/INSTALLATION [I-ELOOP] .)
  3. Remove the clips shown in the figure and set the wiring harness aside. (Vehicle with i-ELOOP)

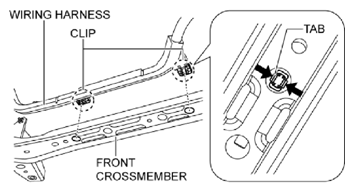

    Fig 1: Identifying Front Crossmember, Wiring Harness And Clip (Vehicle With I-Eloop)
    G10985261Courtesy of MAZDA MOTORS CORP.
  4. Loosen the No. 1 engine mount rubber installation bolt (front crossmember side) shown in the figure.

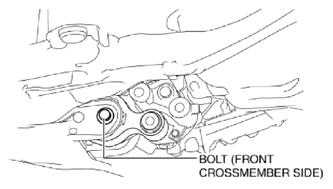

    Fig 2: Identifying No. 1 Engine Mount Rubber Installation Bolt (Front Crossmember Side)
    G10985262Courtesy of MAZDA MOTORS CORP.
  5. Remove the No. 1 engine mount rubber and the front crossmember component as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
