Rocker Arm Installation Note

  1. Apply engine oil to the HLAs and the end of the valve stems.

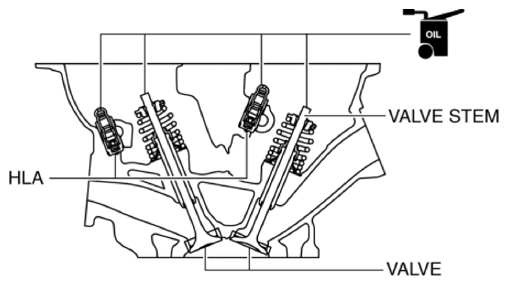

    Fig 1: Applying Engine Oil To HLAs And End Of Valve Stems
    G10985214Courtesy of MAZDA MOTORS CORP.
  2. Install the rocker arms to the same positions as before removal.
