Exhaust System Side

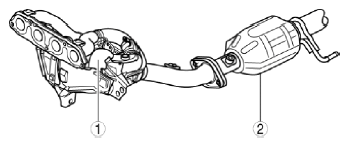

Fig 1: Exhaust System Emission Components Location
G10985452Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 WU-TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
(See WARM-UP THREE-WAY CATALYTIC CONVERTER (WU-TWC) INSPECTION .)
2 TWC
(See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
