Except U.S.A. And CANADA

  1. Remove in the order indicated in the table.

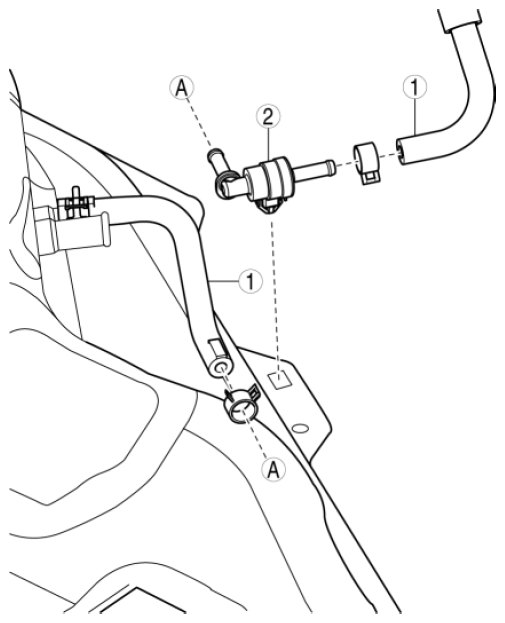

    Fig 1: Removing Check Valve
    G10985488Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Evaporative hose
    2 Check valve
  2. Install in the reverse order of removal.
