U.S.A. And CANADA

  1. Remove the check valve. (See FUEL TANK REMOVAL/INSTALLATION .)
  2. Verify that there is airflow when positive pressure is applied to port A.

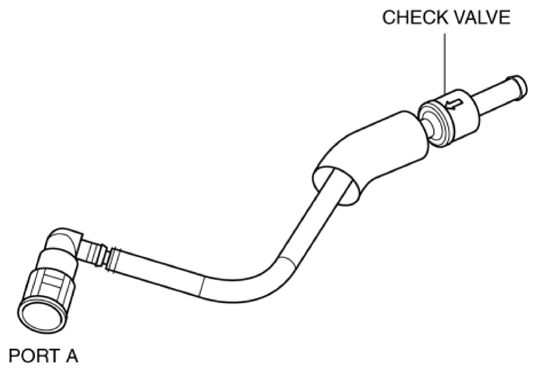

    Fig 1: Inspecting Check Valve
    G10985489Courtesy of MAZDA MOTORS CORP.
  3. Verify that there is airflow when negative pressure is applied to port A.
