Signature Wing Illumination Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

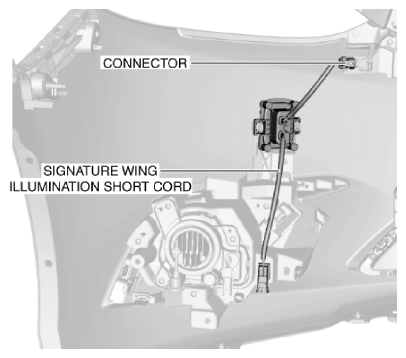

    Fig 1: Disconnecting Connector
    G10988061Courtesy of MAZDA MOTORS CORP.
  5. Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION .)
  6. Remove the lower grille molding. (See RADIATOR GRILLE DISASSEMBLY/ASSEMBLY .)
  7. Remove the screws.

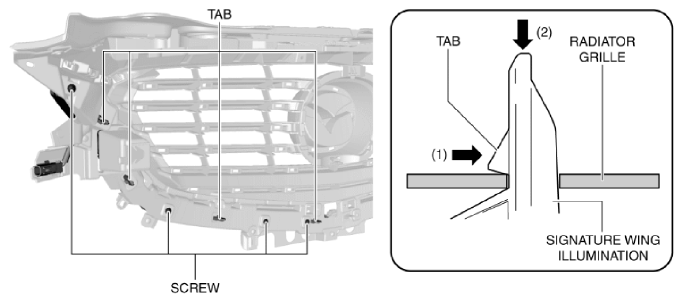

    Fig 2: Removing Screws
    G10988062Courtesy of MAZDA MOTORS CORP.
  8. While pressing the signature wing illumination tabs in the direction of arrow (1) shown in the figure, press the signature wing illumination in the direction of arrow (2) shown in the figure, and detach the signature wing illumination tabs from the radiator grille.
  9. Remove the signature wing illumination.

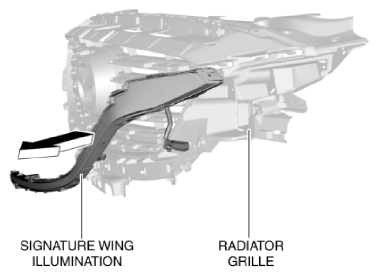

    Fig 3: Removing Signature Wing Illumination
    G10988063Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal.
