Glove Compartment Light Bulb Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Open the glove compartment.

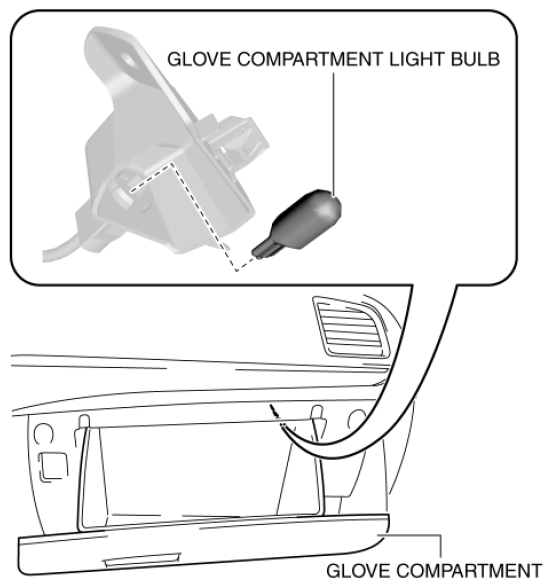

    Fig 1: Opening Glove Compartment
    G10988056Courtesy of MAZDA MOTORS CORP.
  3. Remove the glove compartment light bulb.
  4. Install in the reverse order of removal.
