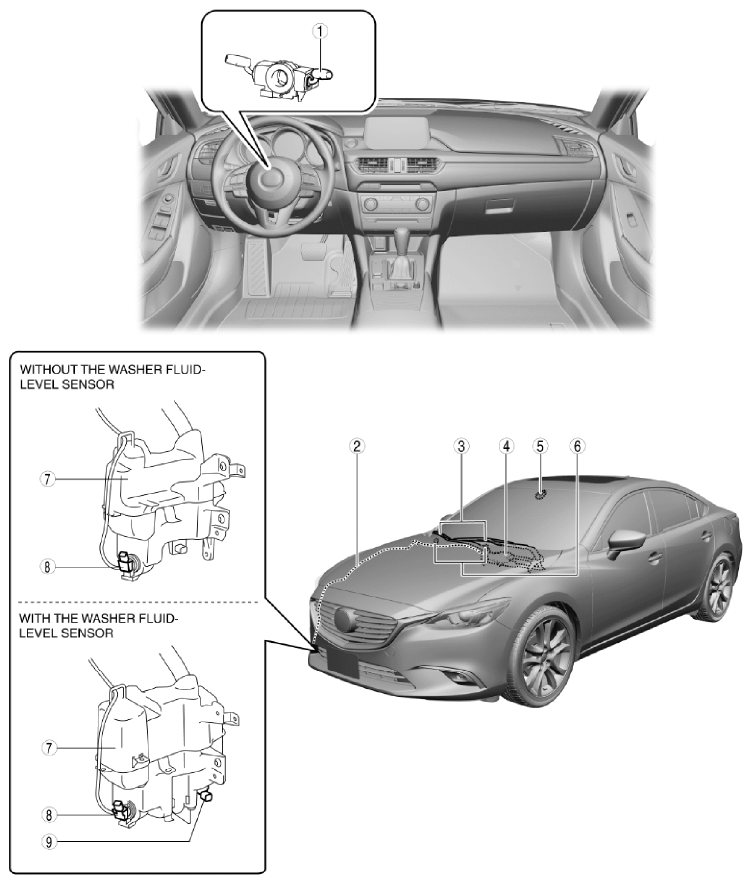

| 1 |
Wiper and washer switch
(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
(See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION .) |
| 2 |
Windshield washer hose
(See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION .) |
| 3 |
Windshield wiper arm and blade
(See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
(See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT .) |
| 4 |
Windshield wiper motor
(See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
(See WINDSHIELD WIPER MOTOR INSPECTION .) |
| 5 |
Rain sensor (with auto wiper system)
(See RAIN SENSOR REMOVAL/INSTALLATION .)
(See RAIN SENSOR INITIALIZATION SETTING .)
(See WIPER/WASHER SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) |
| 6 |
Windshield washer nozzle
(See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION .)
(See WINDSHIELD WASHER NOZZLE ADJUSTMENT .) |
| 7 |
Washer tank
(See WASHER TANK REMOVAL/INSTALLATION .) |
| 8 |
Washer motor
(See WASHER MOTOR REMOVAL/INSTALLATION .)
(See WASHER MOTOR INSPECTION .) |
| 9 |
Washer fluid-level sensor (with washer fluid-level sensor)
(See WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .)
(See WASHER FLUID-LEVEL SENSOR INSPECTION .) |
