On-Board Diagnostics - Automatic Transaxle
>>
On-Board Diagnostic System Foreword
>>
Troubleshooting Procedure
Troubleshooting Procedure

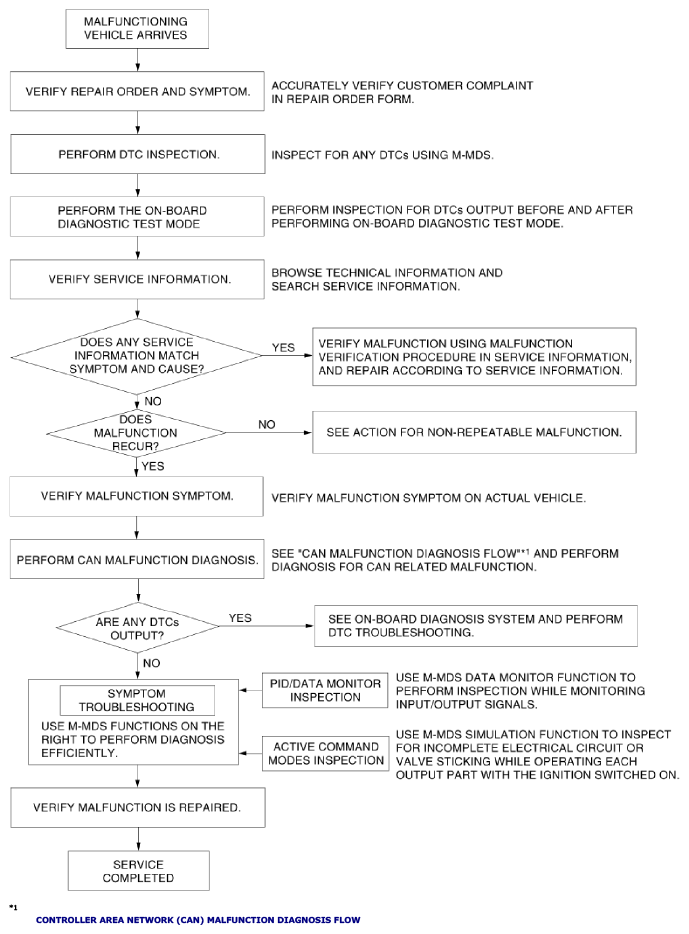

Fig 1: FW6A-EL On-Board Diagnostic System Troubleshooting Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
