Connector Disconnect Note

  1. Press the area (1) indicated by the arrow and slide it as shown in the figure (2).

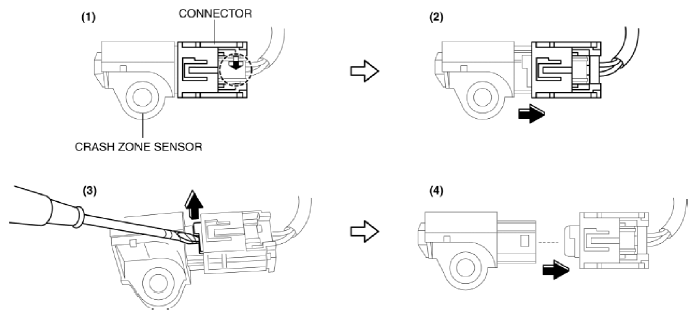

    Fig 1: Disconnecting Crash Zone Sensor Connector Using Tape Wrapped Flathead Screwdriver
    G10986958Courtesy of MAZDA MOTORS CORP.
  2. Lift up the location shown in the figure using a tape-wrapped flathead screwdriver (3) and disconnect the connector (4).
