Electric Parking Brake Control Module Removal

NOTE:
  • The electric parking brake control module records the vehicle specification information and the electric parking brake operation/release condition.
  • A new electric parking brake control module has not record of the vehicle specification information and the electric parking brake operation/release condition.
  1. Switch the ignition ON (engine off).
  2. Release the electric parking brake.
  3. Switch the ignition off.
  4. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    3. Rear vent duct No. 2 (See REAR VENT DUCT REMOVAL/INSTALLATION .)
  5. Remove the bolt.

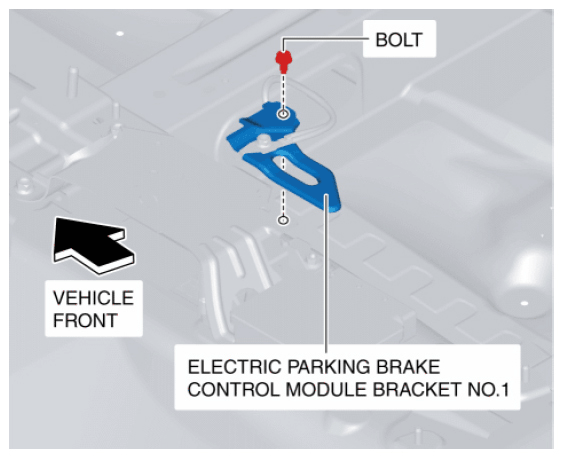

    Fig 1: Removing Electric Parking Brake Control Module Bolt
    G10985999Courtesy of MAZDA MOTORS CORP.
  6. Remove the electric parking brake control module bracket No. 1.
  7. Disconnect the electric parking brake control module connector.

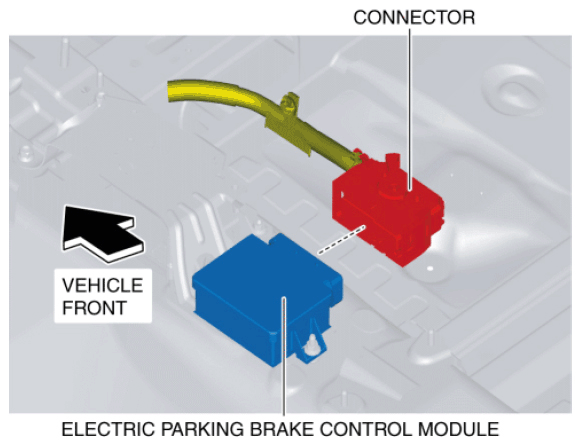

    Fig 2: Disconnecting Electric Parking Brake Control Module Connector
    G10986000Courtesy of MAZDA MOTORS CORP.
  8. Remove the nuts.

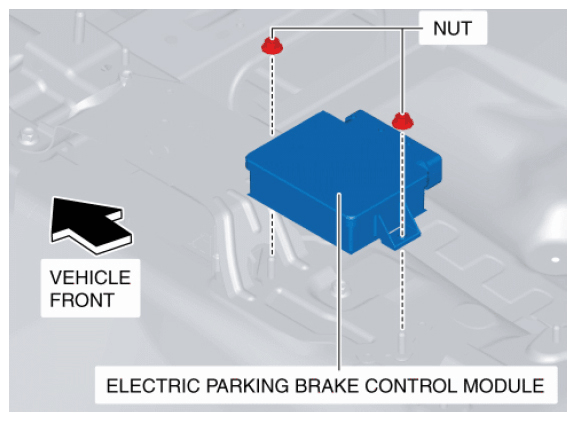

    Fig 3: Removing Electric Parking Brake Control Module Nuts
    G10986001Courtesy of MAZDA MOTORS CORP.
  9. Remove the electric parking brake control module.
