Rear Window Defogger System Inspection
>>
Manual Air Conditioner
>>
System wiring diagram
System wiring diagram

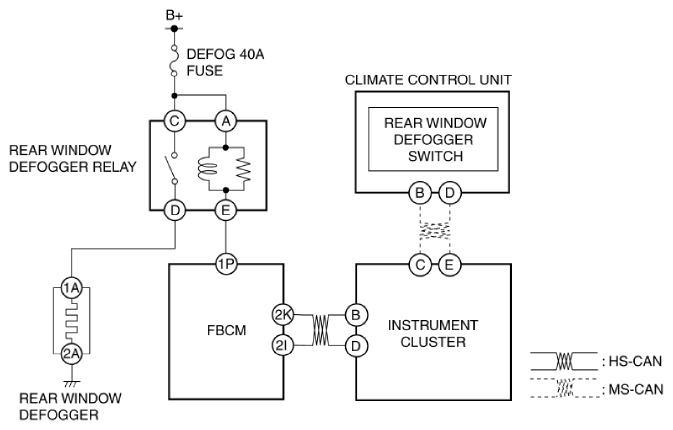

Fig 1: Rear Window Defogger System Wiring Diagram (Manual Air Conditioner)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
