Front Door Glass Preparation

Perform the adjusting the top of the front door glass to the position approx. 90 mm {3.5 in} away from the upper part of the front door trim.

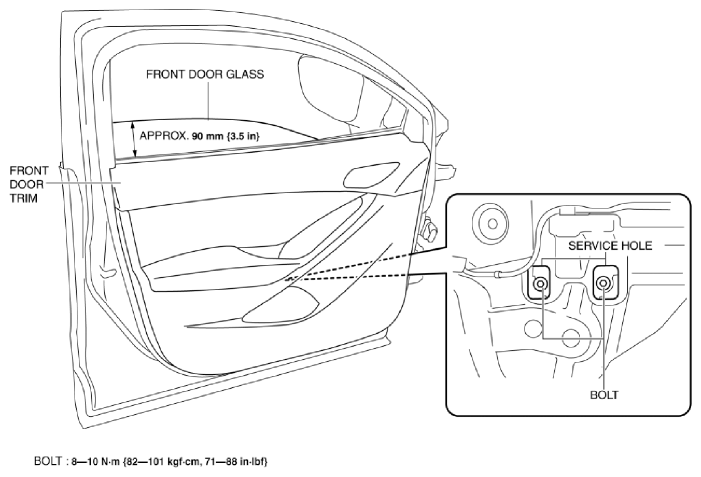

Fig 1: Identifying Front Door Glass Dimension

Courtesy of MAZDA MOTORS CORP.
