Shock Absorber and Coil Spring Installation Note

CAUTION:

• Set the front stabilizer control link aside before installing the front shock absorber and coil spring. Otherwise, the dust boot of the front stabilizer control link could be damaged.

1. Set the front stabilizer control link aside so that it does not interfere with the servicing.

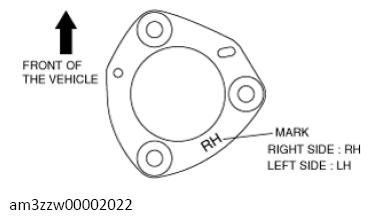

2. Install the stiffener so that the mark (RH or LH) faces upward.

   Courtesy of MAZDA MOTORS CORP.

3. Raise the front lower arm using a jack and install the shock absorber and coil spring.

Courtesy of MAZDA MOTORS CORP.
