Sliding Door Quarter Glass Removal/Installation

  1. Fully open the sliding door glass.
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Side door garnish (See SIDE DOOR GARNISH REMOVAL/INSTALLATION .)
    2. Rear side trim (See REAR SIDE TRIM REMOVAL/INSTALLATION .)
    3. Sliding door trim (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)

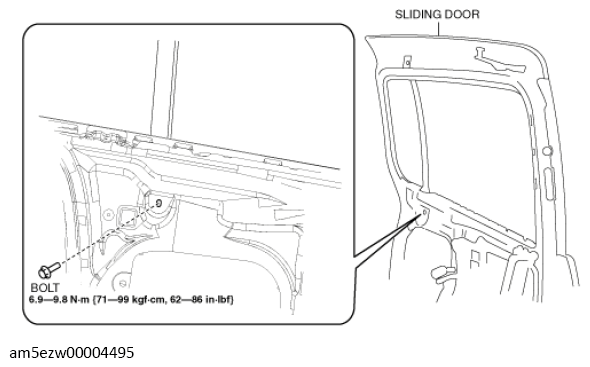

  4. Remove the bolt.
    Fig 1: Sliding Door Bolt With Torque Specification
    G13728026Courtesy of MAZDA MOTORS CORP.

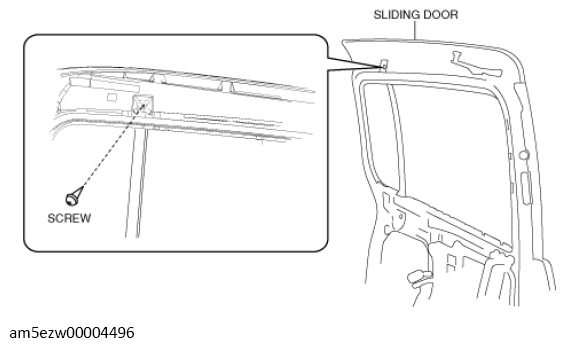

  5. Remove the screw.
    G13728027Courtesy of MAZDA MOTORS CORP.
  6. Remove the sliding door glass guide and glass run channel as a single unit.
    G13728028Courtesy of MAZDA MOTORS CORP.

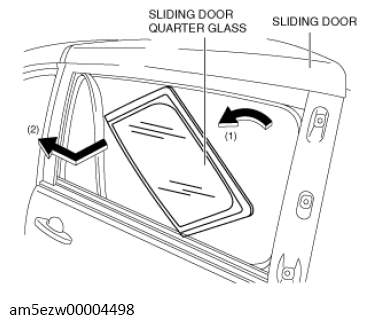

  7. Tilt the sliding door quarter glass in the direction of arrow (1) shown in the figure and remove it in the direction of arrow (2).
    G13728029Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
