Front Door Quarter Glass Removal/Installation

  1. Fully open the front door glass.
  2. Disconnect the negative battery cable.
  3. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  4. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  5. Remove the bolt.
    Fig 1: Front Door Glass Guide Bolt With Torque Specification

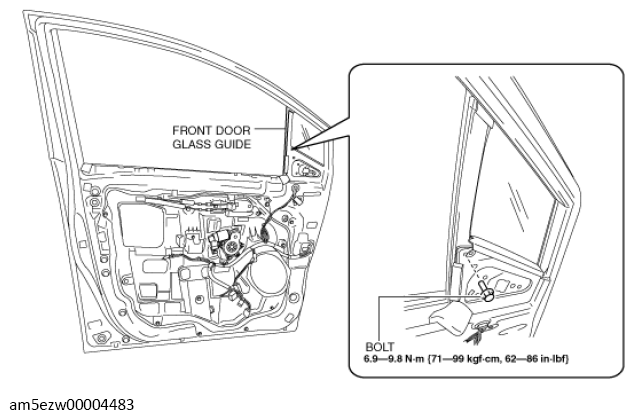

    G13727950Courtesy of MAZDA MOTORS CORP.
  6. Remove the screw.

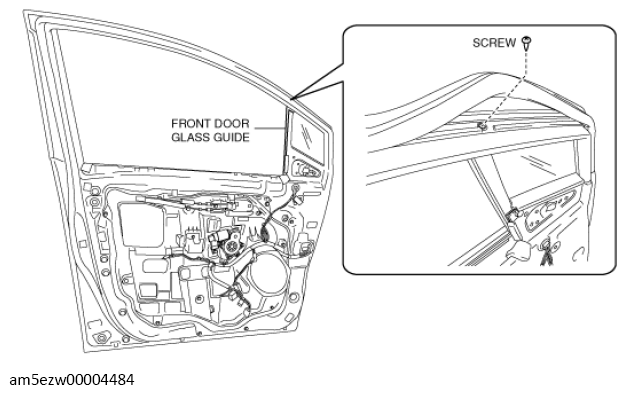

    G13727951Courtesy of MAZDA MOTORS CORP.
  7. Remove the front door glass guide and glass run channel as a single unit.

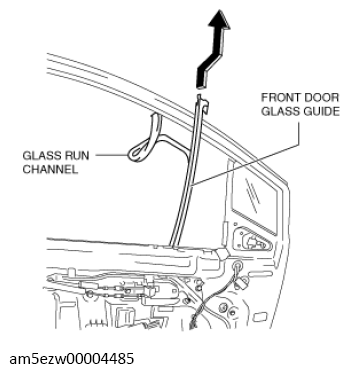

    G13727952Courtesy of MAZDA MOTORS CORP.
  8. Remove the front door quarter glass.

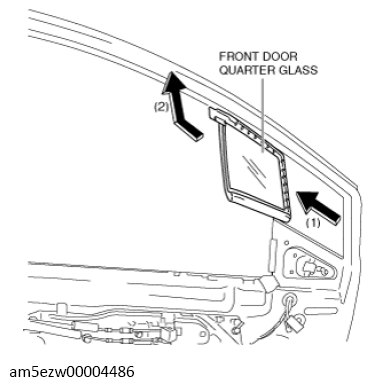

    G13727953Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
