Accessory Socket Removal/Installation: Rear

  1. Disconnect the negative battery cable.

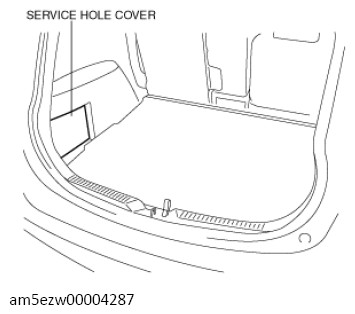

  2. Remove the service hole cover.
    G13728599Courtesy of MAZDA MOTORS CORP.

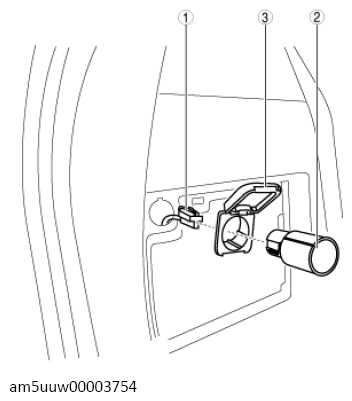

  3. Remove in the order indicated in the table.
    G13728600Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Connector
    2 Socket
    (See SOCKET REMOVAL NOTE .)
    3 Cap
    (See CAP REMOVAL NOTE .)
  4. Install in the reverse order of removal.
