Adhesive Polyurethane (3) Assembly Note

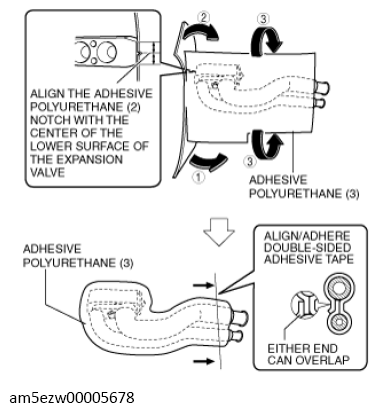

  1. Wrap the low-pressure side of the evaporator pipe with insulator.
    G13728855Courtesy of MAZDA MOTORS CORP.
