Heater Hose Removal Note

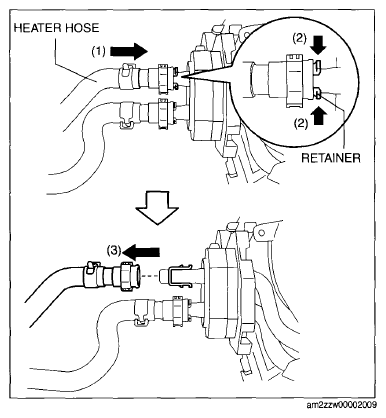

  1. While pressing the heater hose into the A/C unit side (1), pinch the quick connector retainer (2), then disconnect the heater hose from the A/C unit (3).
    G09132890Courtesy of MAZDA MOTORS CORP.
