Second-Row Seat Removal/Installation

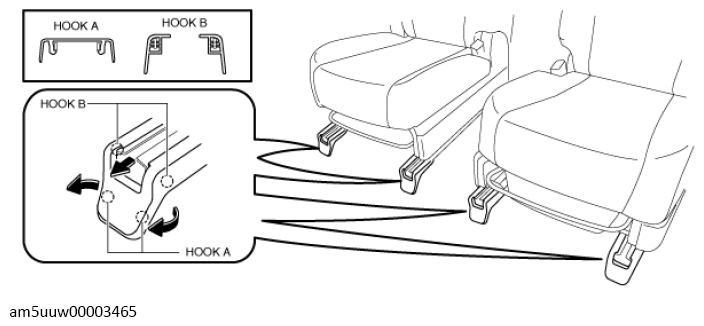

Detach the hook A and B, remove the cover.

Courtesy of MAZDA MOTORS CORP.

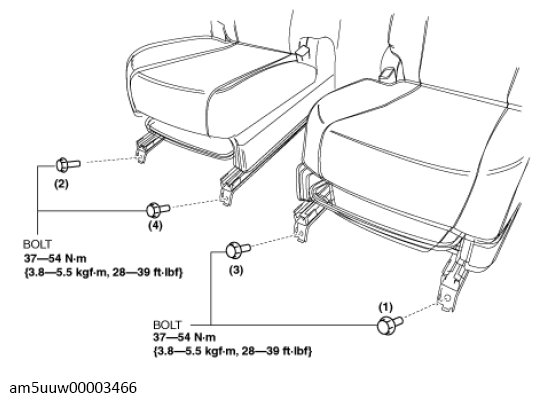

Remove the bolts in the order of (1), (2), (3), (4) shown in the figure.

Fig 1: Second-Row Seat Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

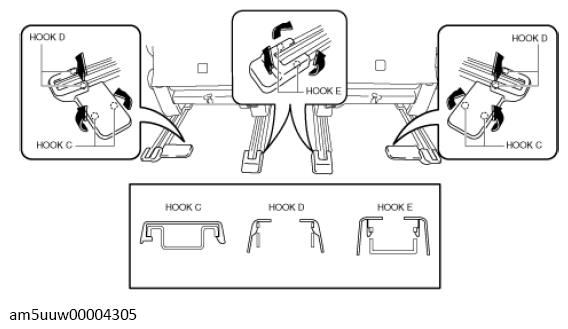

Detach the hook C, D and E, remove the cover.

Courtesy of MAZDA MOTORS CORP.

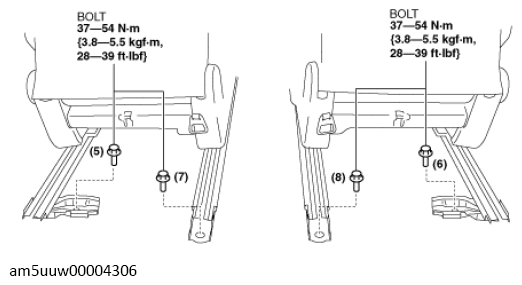

Remove the bolts in the order of (5), (6), (7), (8) shown in the figure.

Fig 2: Second-Row Seat Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Take the second-row seat out.
Install in the reverse order of removal.
