Switch Panel Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

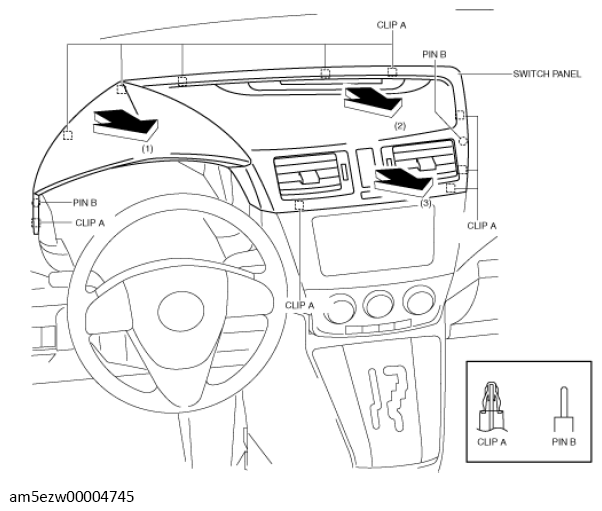

  4. Pull the switch panel in the direction of the arrow in the order of (1), (2), (3) and remove the switch panel while detaching the clips A and pins B.
    G13728414Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the microphone connector. (vehicles with microphone)
  6. Remove the switch panel.
  7. Install in the reverse order of removal.
