Side Wall Removal/Installation: Driver-side

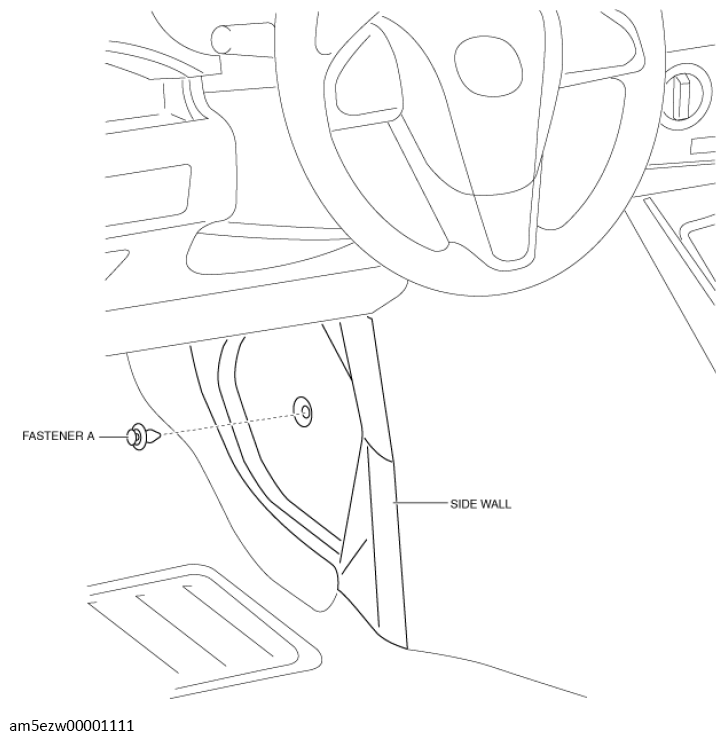

  1. Remove the fastener A.
    G13728402Courtesy of MAZDA MOTORS CORP.

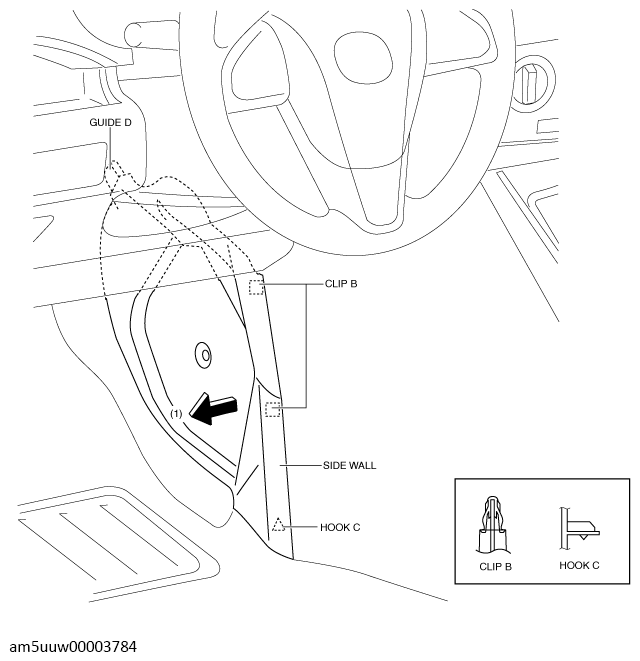

  2. Pull out the side wall in the direction shown in the direction of the arrow (1) shown in the figure, then remove the clips B and hook C.
    G13728403Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When remove the clips B and hook C, be careful not to damage the guide D.

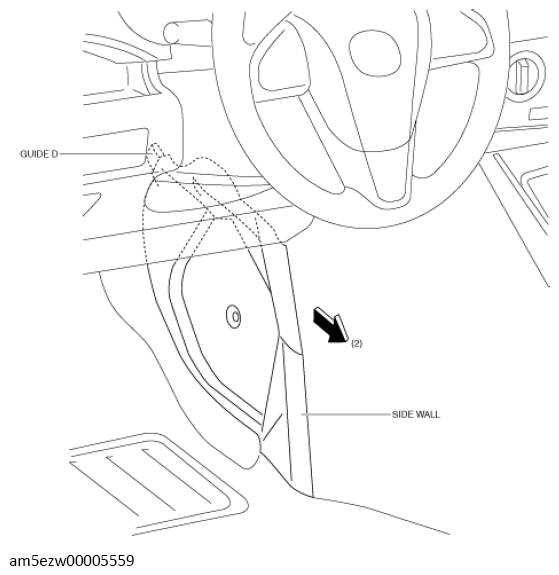

  3. Pull the side wall in the direction of the arrow (2) shown in the figure, then remove it while detaching the guide D.
    G13728404Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
