Shift Panel Removal/Installation: MTX

Shift lever to neutral position.
Remove the following parts:
1. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
2. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
3. Shift lever knob (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)

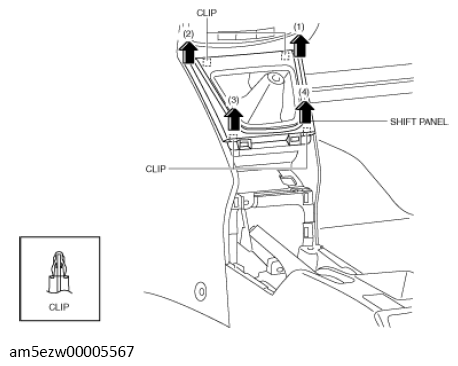

Pull the shift panel in the direction of the arrow (1), (2), (3), (4) while remove the clips.

Courtesy of MAZDA MOTORS CORP.
Remove the shift panel.
Install in the reverse order of removal.
