Splash Shield Removal/Installation: Rear

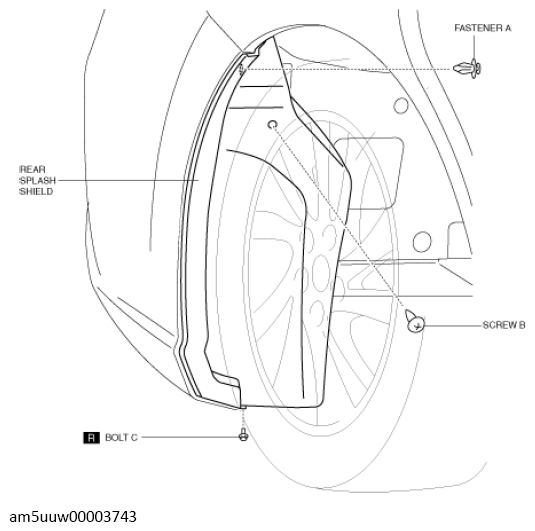

  1. Remove the fastener A, screw B, and bolt C.
    G13728323Courtesy of MAZDA MOTORS CORP.

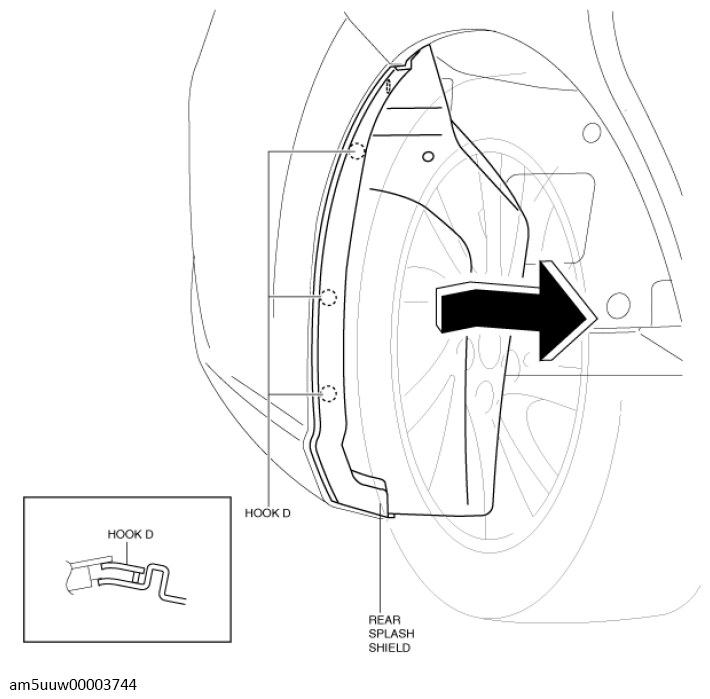

  2. Pull the rear splash shield in the direction of the arrow shown in the figure, then remove it while detaching the hook D.
    G13728324Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
