Splash Shield Removal/Installation: Front

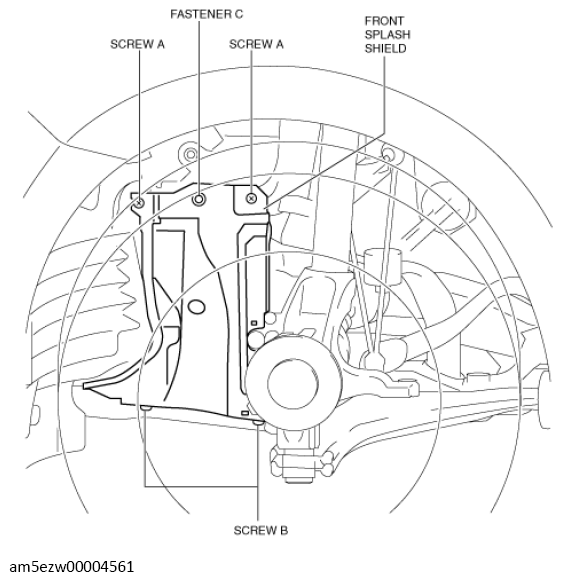

  1. Remove the screws A, screw B, and fastener C.
    G13728322Courtesy of MAZDA MOTORS CORP.
  2. Remove the front splash shield.
  3. Install in the reverse order of removal.
