Side Step Molding Installation

NOTE:
  • Double-sided adhesive tape has already been adhered to a new side step molding for installation.
  • When a side step molding is to be reused, perform the following procedure:
  1. Remove any grease or dirt from the affixing surface of the side step molding.

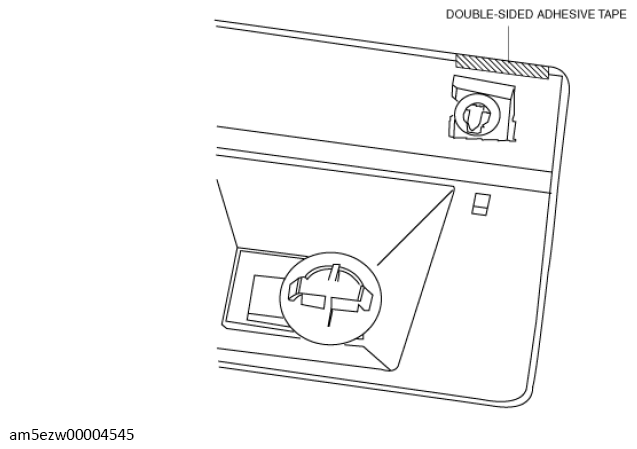

  2. Affix double-sided adhesive tape to the position shown in the figure.
G13728312Courtesy of MAZDA MOTORS CORP.

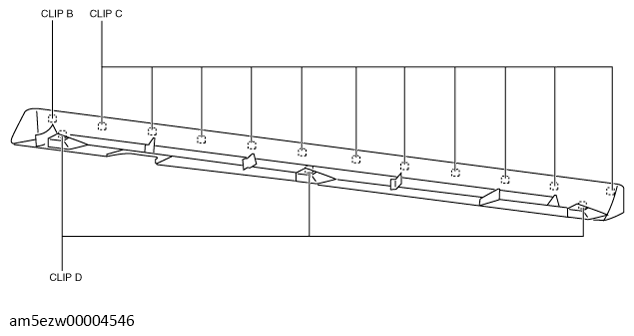

  1. Install the clips B, C and D to the side step molding.
    G13728313Courtesy of MAZDA MOTORS CORP.

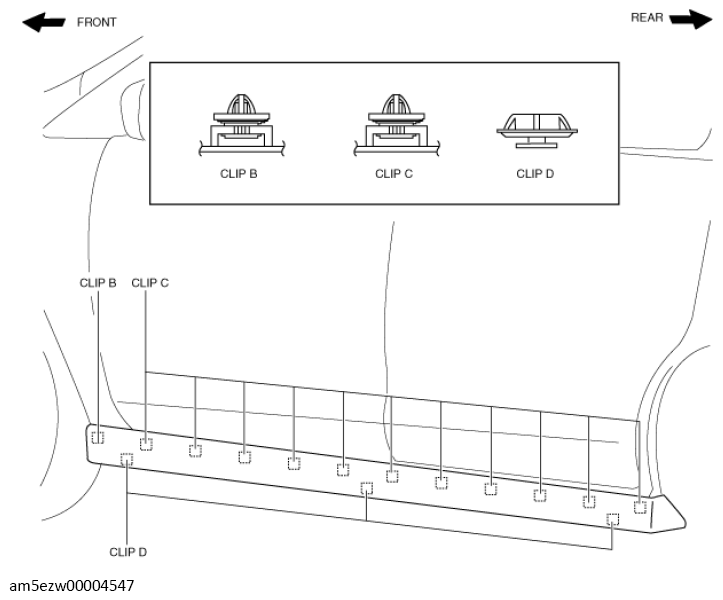

  2. Install the side step molding while pushing the clips B, C, and D installation area shown in the figure.
    G13728314Courtesy of MAZDA MOTORS CORP.

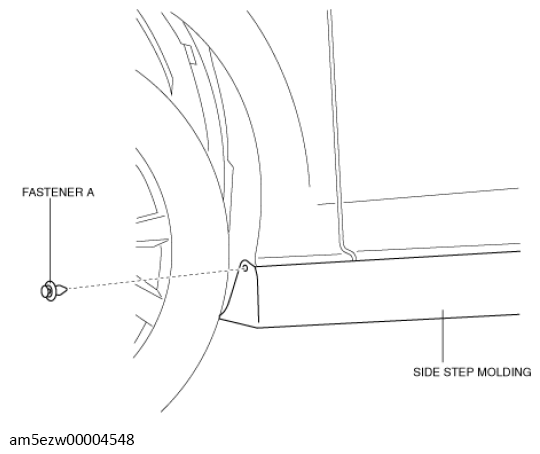

  3. Install the fastener A.
G13728315Courtesy of MAZDA MOTORS CORP.
