Rear Spoiler Removal/Installation: Notes

  1. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  2. Remove the caps.
  3. Remove the nuts A.

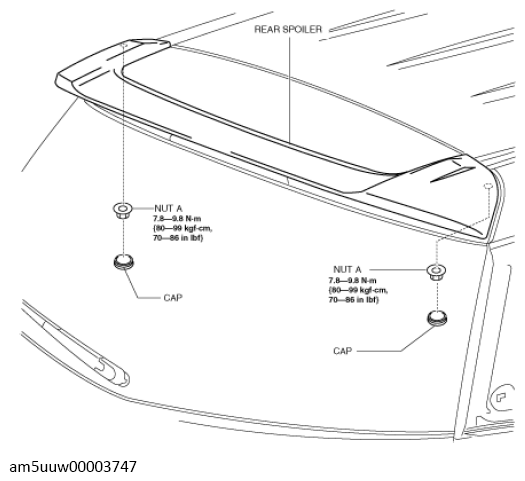

    Fig 1: Rear Spoiler Nuts A With Torque Specification
    G13728307Courtesy of MAZDA MOTORS CORP.

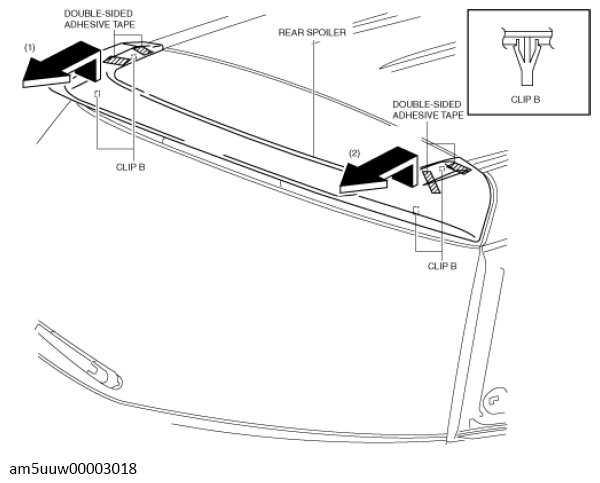

  4. Pull the rear spoiler in the direction of the arrow (1), (2) while detaching the clips B and double-sided adhesive tape.
    G13728308Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear spoiler.
  6. Install in the reverse order of removal. (See DOUBLE-SIDED ADHESIVE TAPE INSTALLATION NOTE .)
