Mudguard Removal/Installation: Front

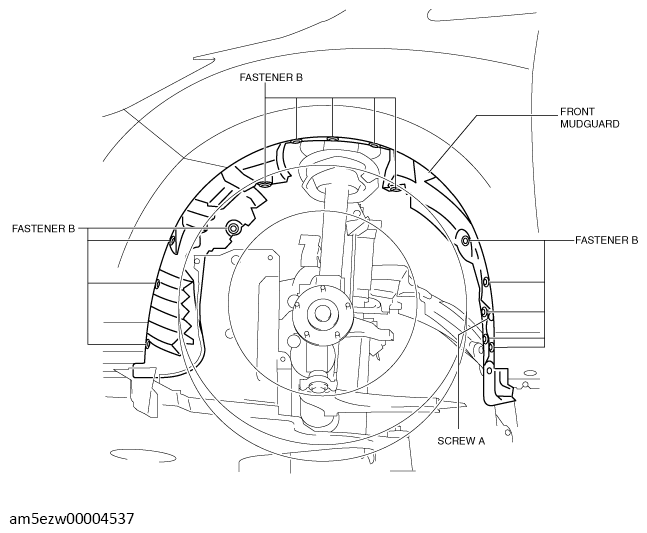

  1. Remove the screw A.
    G13728301Courtesy of MAZDA MOTORS CORP.
  2. Remove the fastener B.

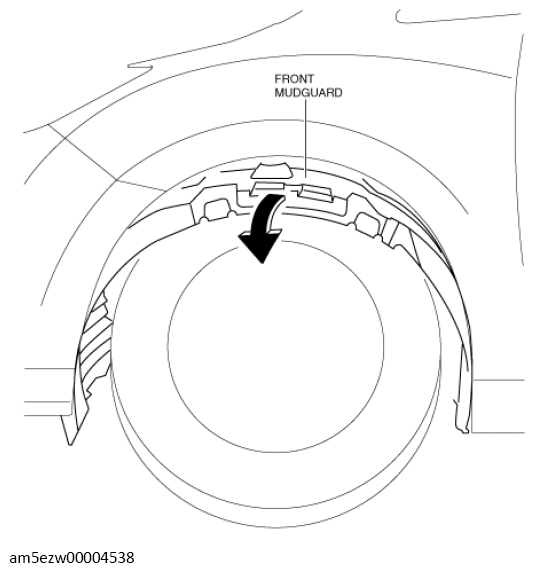

  3. Pull the front mudguard in the direction of the arrow shown in the figure and remove it.
    G13728302Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
