Front Flap Removal/Installation

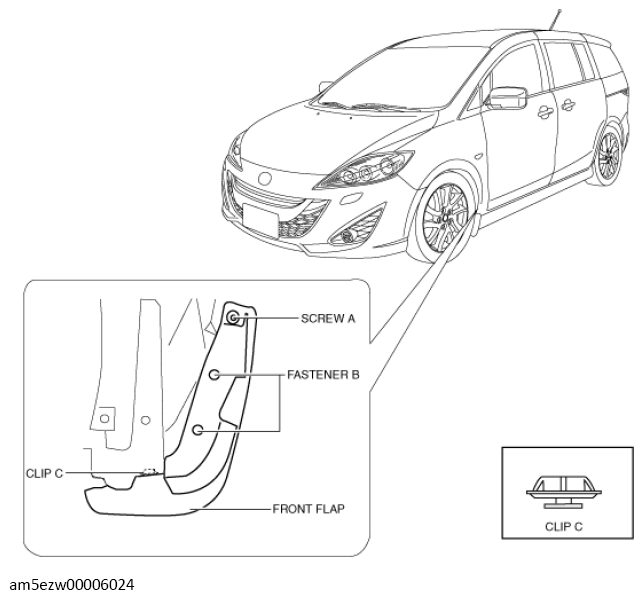

  1. Remove the screw A and fasteners B.
    G13728297Courtesy of MAZDA MOTORS CORP.
  2. Detach the clip C, then remove the front flap.
  3. Install in the reverse order of removal.
