Extractor Chamber Removal/Installation

  1. Remove the following parts:
    1. Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
    2. Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION .)
    3. Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)

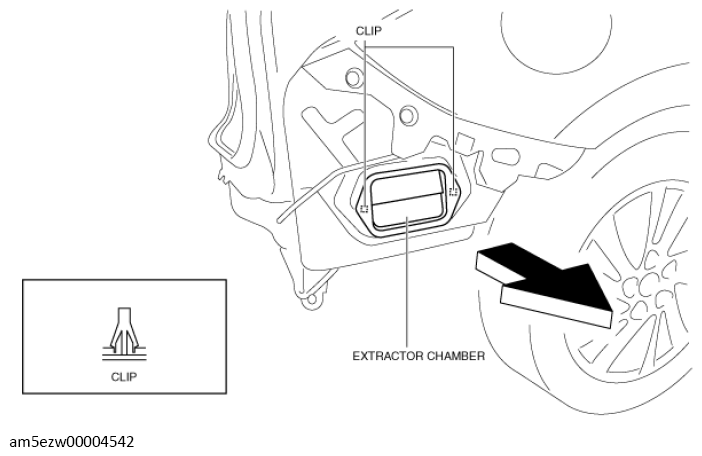

  2. Pull the extractor chamber in the direction of the arrow shown in the figure while detaching the clips.
    G13728295Courtesy of MAZDA MOTORS CORP.
  3. Remove the extractor chamber.
  4. Install in the reverse order of removal.
