Exhaust System Insulator Removal/Installation

  1. Remove the exhaust system insulator in the order shown in the figure.
  2. Install in the reverse order of removal.

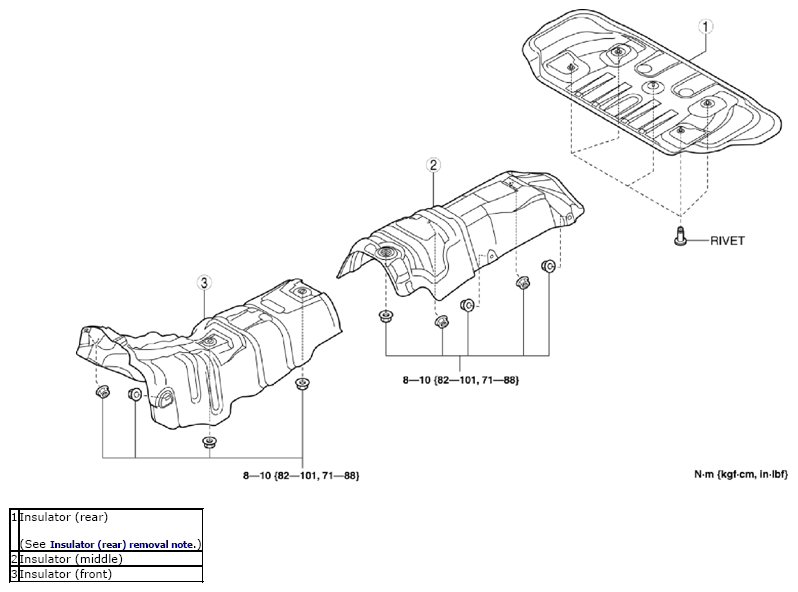

    Fig 1: Identifying Exhaust System Insulator Components With Torque Specifications
    G10960097Courtesy of MAZDA MOTORS CORP.
