Climate Control Unit Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figure.

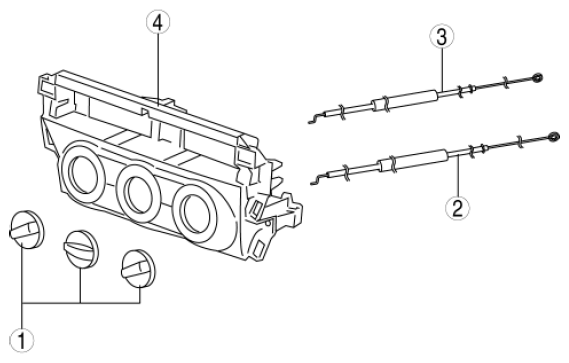

    Fig 1: Identifying Climate Control Unit Components
    G10961530Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Dial
    2 Airflow mode wire
    (See WIRE REMOVAL NOTE .)
    3 Air mix wire
    (See WIRE REMOVAL NOTE .)
    4 Climate control unit
  2. Assemble in the reverse order of disassembly.
