Rear Oil Seal Replacement: Notes

  1. Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION [C66M-R] (MTX).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL] (ATX).)
  2. Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION [C66M-R] (MTX).) (See DRIVE PLATE REMOVAL/INSTALLATION [FW6A-EL] (ATX).)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

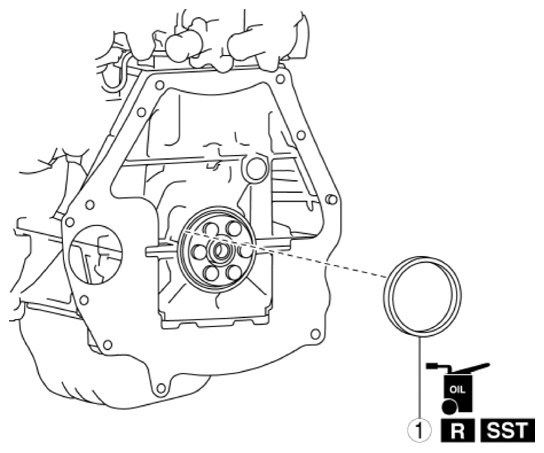

    Fig 1: Installing Rear Oil Seal
    G10959785Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Rear oil seal
    (See REAR OIL SEAL REMOVAL NOTE .)
    (See REAR OIL SEAL INSTALLATION NOTE .)
