Plug Hole Plate Removal/Installation: Removal

  1. Pull up the front part of the plug hole plate at the same time and remove the rubber from the adapter on the engine side.

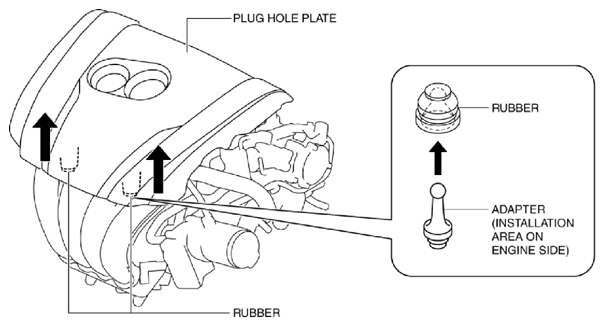

    Fig 1: Pulling Up Plug Hole Plate Front Part
    G10959582Courtesy of MAZDA MOTORS CORP.
  2. Pull up the plug hole plate in the order shown in the figure and remove the adapter from the rubber on the engine side.

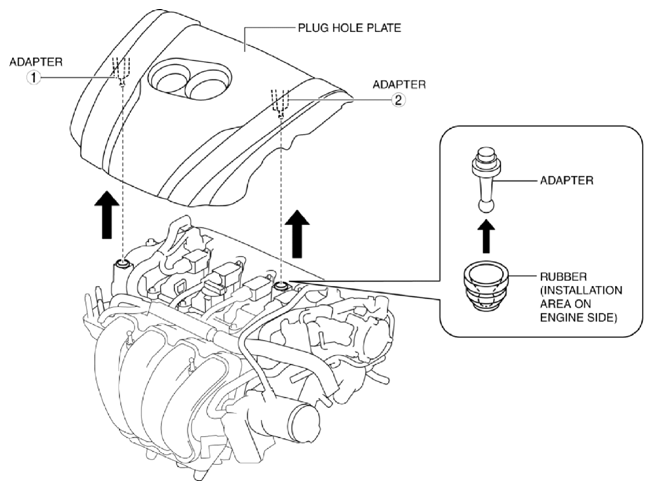

    Fig 2: Pulling Up Plug Hole Plate
    G10959583Courtesy of MAZDA MOTORS CORP.
