Snap Ring (1) Installation Note

  1. When replacing the pressure plate, idler pulley, stator (stator and thermal protector), or idler body, replace the snap ring (1).

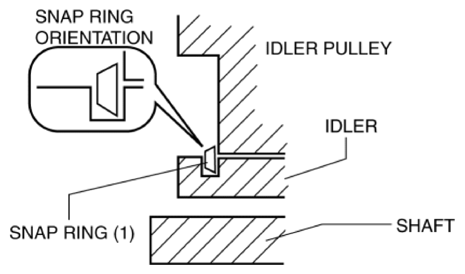

    Fig 1: Installing Snap Ring
    G10959874Courtesy of MAZDA MOTORS CORP.
