Replacing Active Driving Display as Single Component

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Upper column cover (Refer to COLUMN COVER REMOVAL/INSTALLATION .)
    2. Meter hood (Refer to METER HOOD REMOVAL/INSTALLATION .)
    3. Instrument cluster (Refer to INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  3. Remove the screws.

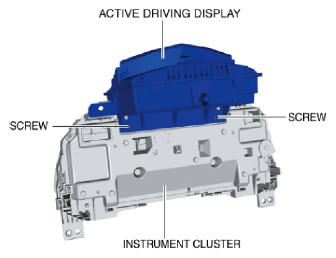

    Fig 1: Removing Active Driving Display Screws
    G10963850Courtesy of MAZDA MOTORS CORP.
  4. While pressing the instrument cluster tabs in the direction of arrows (1) shown in the figure, pull the wiring harness in the direction of arrow (2) and disconnect the wiring harness from the instrument cluster.

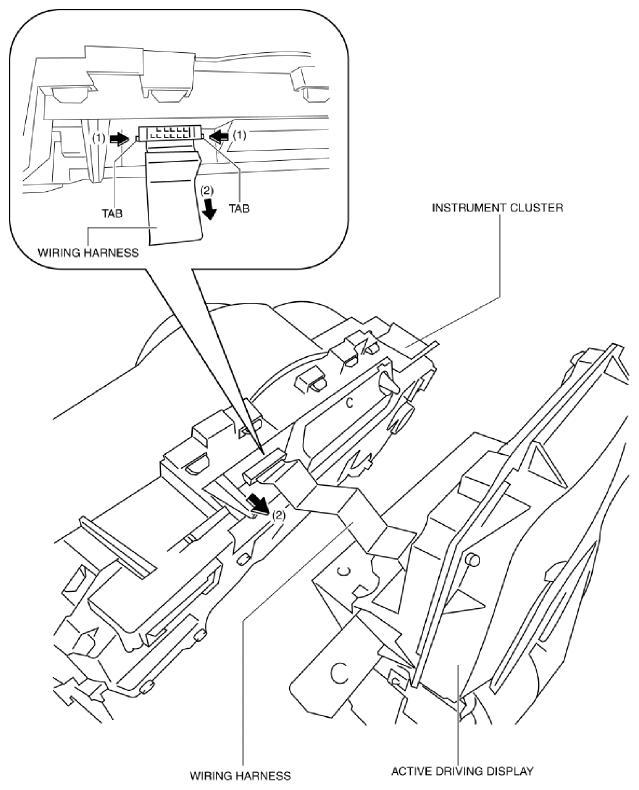

    Fig 2: Pressing Instrument Cluster Tabs
    G10963851Courtesy of MAZDA MOTORS CORP.
  5. Remove the active driving display.
  6. Install in the reverse order of removal. (Refer to ACTIVE DRIVING DISPLAY INSTALLATION NOTE .)
