Liftgate Lock Striker Removal/Installation

  1. Remove the lock bezel on the trunk end trim. (Refer to TRUNK END TRIM REMOVAL/INSTALLATION .)
  2. Remove the bolts, then remove the liftgate lock striker.

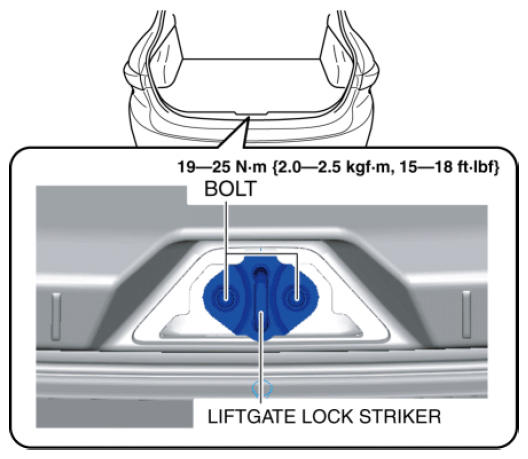

    Fig 1: Identifying Liftgate Lock Striker And Bolts With Torque Specification
    G10963044Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Adjust the liftgate. (Refer to LIFTGATE ADJUSTMENT .)
