Cd Player Installation

Connect the connector.

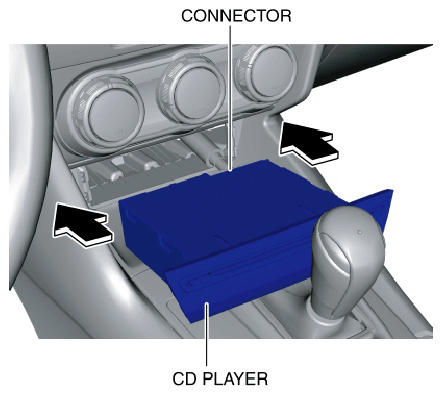

Fig 1: Connecting CD Player Connector
Courtesy of ABLE BODY CORP.
Install the CD player.
Connect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
