Selector Lever Inspection

  1. Switch the ignition ON (engine off or on).
  2. Perform the following procedures to inspect the selector lever.
    1. Verify that the selector lever can be operated as shown in the figure.

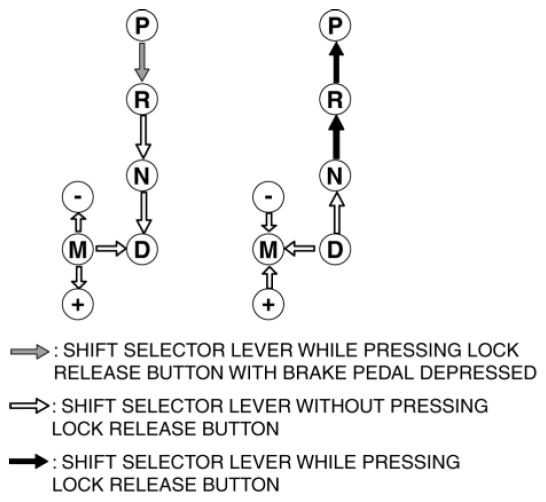

      Fig 1: Selector Lever Operation Diagram
      G10961218Courtesy of MAZDA MOTORS CORP.
    2. Verify that the selector lever can be operated smoothly and moderately.
