Indicator Removal/Installation: Notes

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the upper panel. (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

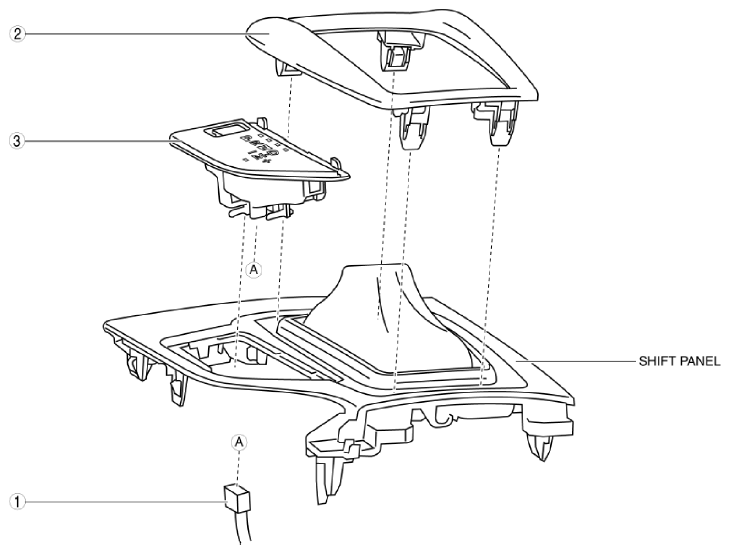

Fig 1: Exploded View Of Indicator

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Indicator panel
3	Indicator (See Indicator Removal Note .)
