Continuity Inspection

NOTE:

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Perform the following procedure to remove the selector lever knob.
NOTE:
- If the servicing is difficult, release the shift lock manually and shift the selector lever to the N position.

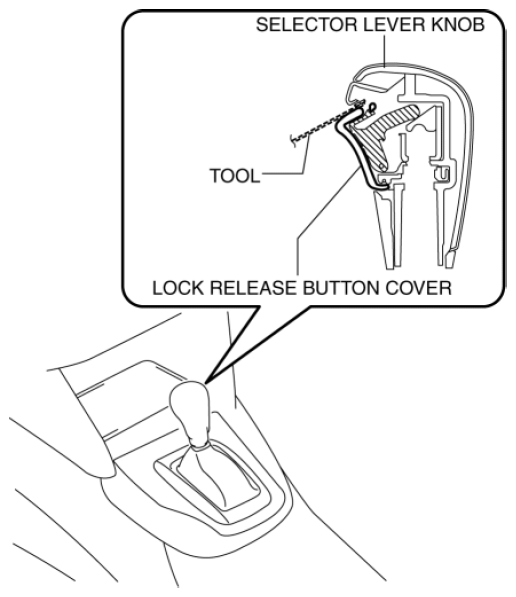

1. Insert the tool (width: 6 mm {0.2 in} or less , thickness: 1 mm {0.04} or less ) as shown in the figure.

  Fig 1: Removing Selector Lever Knob
  Courtesy of MAZDA

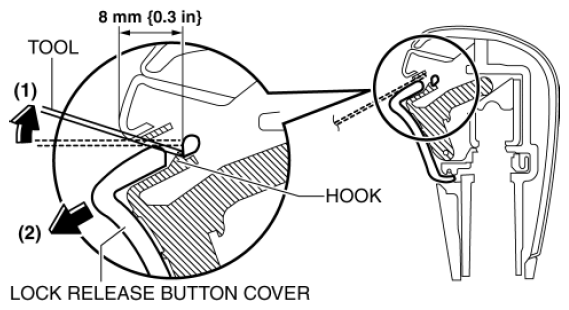

2. Move the tool in the direction of arrow (1) in the figure and detach the hook. Move the lock release button cover in the direction of arrow (2) in the figure and remove it.

  Fig 2: Moving Lock Release Button Cover
  Courtesy of MAZDA

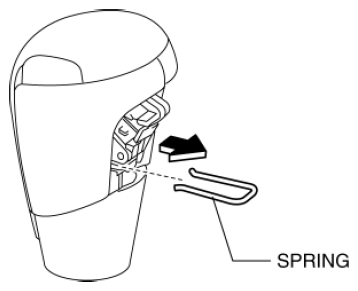

3. Remove the spring.

  Fig 3: Removing Spring
  Courtesy of MAZDA

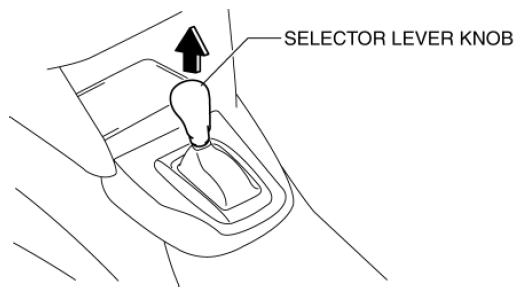

4. Remove the selector lever knob.

  Fig 4: Removing Selector Lever Knob
  Courtesy of MAZDA
Remove the front console. (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)

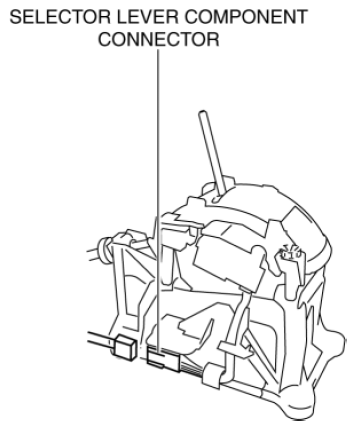

Disconnect the selector lever component connector.

Fig 5: Disconnecting Selector Lever Component Connector
Courtesy of MAZDA

Verify that the continuity between selector lever component terminals E and J.

Fig 6: Checking Continuity Between Selector Lever Component Terminals E And J

Courtesy of MAZDA

If not as verified, replace the selector lever component. (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)

M POSITION SWITCH SPECIFICATION

Test condition	Continuity
Selector lever is in the M position.	Continuity
Selector lever is not in the M position.	No continuity
