Front Lower Arm Bushing Installation Note

Install the front lower arm bushing using the SSTs and the press.
CAUTION:
- Install the front lower arm bushing so that the projection shown in the figure is pointing toward the front and outside of the vehicle.
NOTE:
- Applying soapy water to the front lower arm bushing facilitates installation.
- If soapy water gets in the inner pipe of the front lower arm bushing, always wipe it off using a cloth.

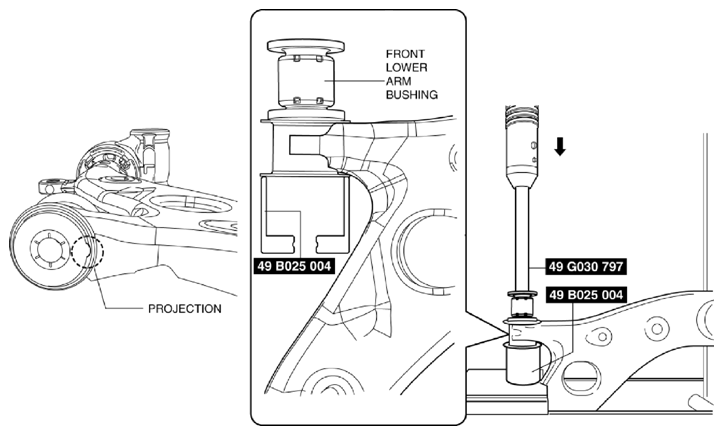

Fig 1: Installing Front Lower Arm Bushing Using SSTs
Courtesy of MAZDA MOTORS CORP.
After installing the front lower arm bushing, verify that it is installed to the position shown in the figure.

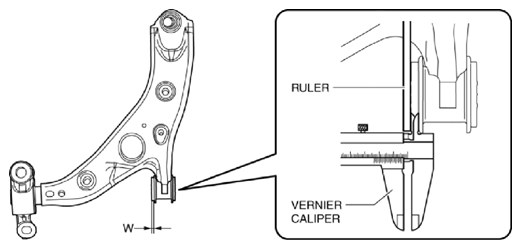

Fig 2: Checking Front Lower Arm Bushing Position Using Vernier Caliper
Courtesy of MAZDA MOTORS CORP.
