Troubleshooting Procedure

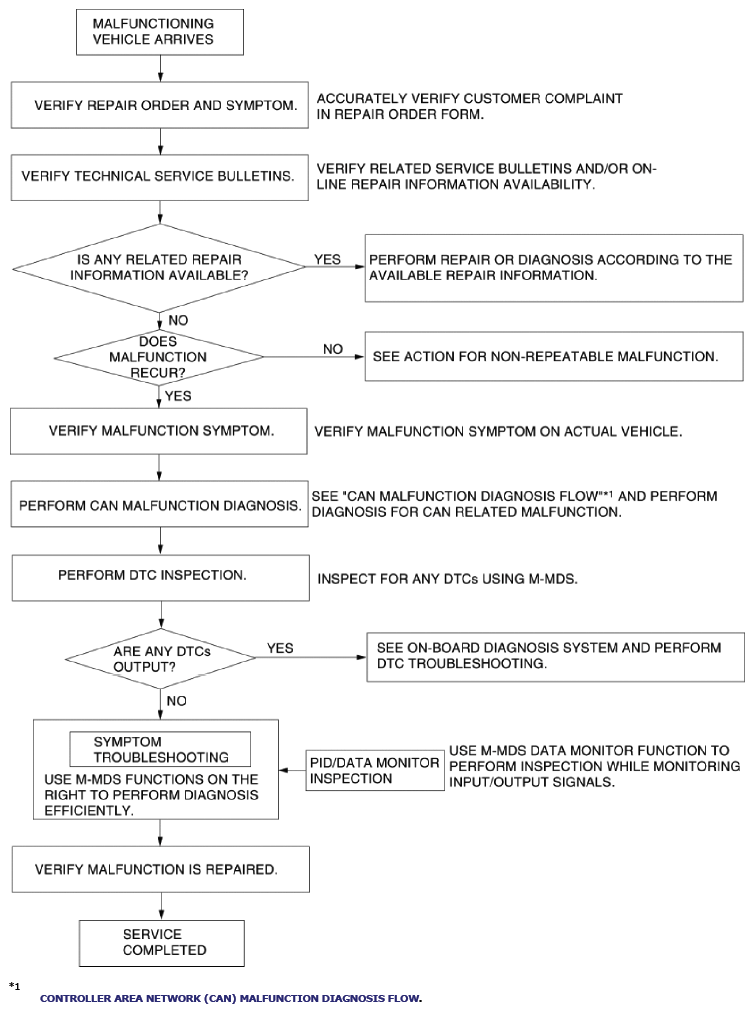

Fig 1: Troubleshooting Procedure Chart
G10961580Courtesy of MAZDA MOTORS CORP.
