Shift Control Module Removal/Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Shift the shift lever to the neutral position.
  2. Remove the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  3. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  4. Remove the air cleaner and air hose as a single unit. (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  5. Remove the battery and battery tray. (Refer to BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  6. Disconnect the control cable from the transaxle.

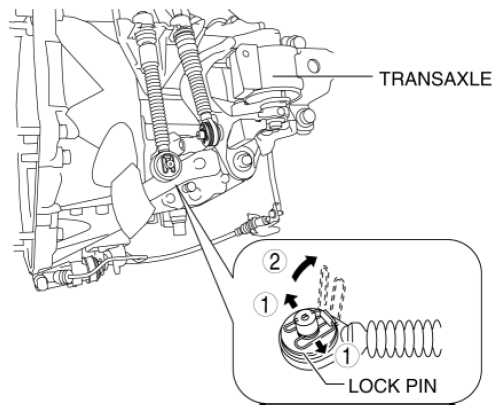

    1. Pull the lock pin in the direction of the arrow shown in the figure and release the control cable end lock.
      Fig 1: Pulling Lock Pin
      G10960971Courtesy of MAZDA MOTORS CORP.

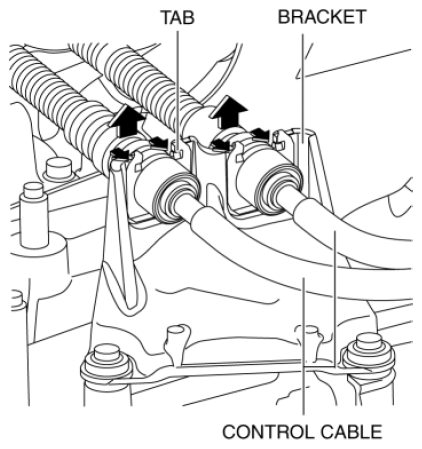

    2. Press the tabs on the control cable and disconnect the control cable from the bracket on the transaxle.
      Fig 2: Pressing Tabs On Control Cable
      G10960972Courtesy of MAZDA MOTORS CORP.

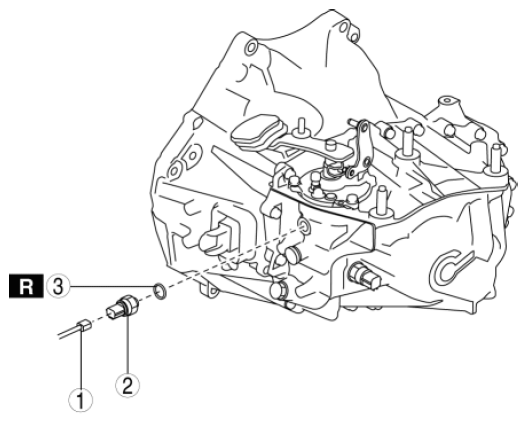

  7. Remove the neutral switch in the order shown in the figure
    Fig 3: Removing Neutral Switch
    G10960973Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Connector
    2 Neutral switch
    3 Gasket

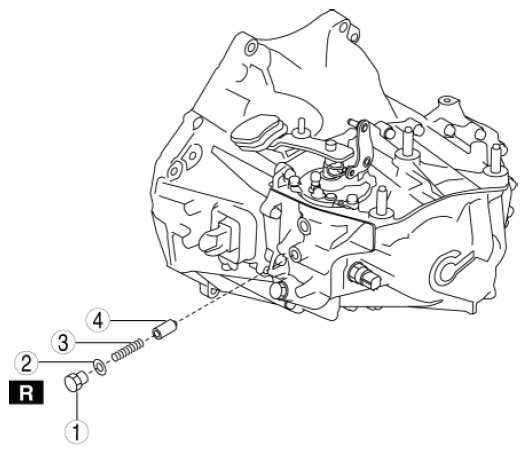

  8. Remove the detent ball pin in the order shown in the figure
    Fig 4: Removing Detent Ball Pin
    G10960974Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Plug
    2 Gasket
    3 Spring
    4 Detent ball pin

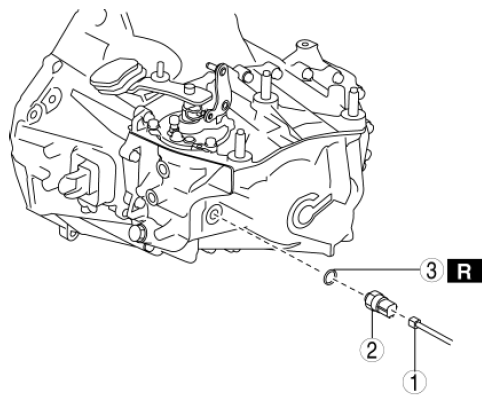

  9. Remove the back-up light switch in the order shown in the figure
    Fig 5: Removing Back-Up Light Switch
    G10960975Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Connector
    2 Back-up light switch
    3 Gasket

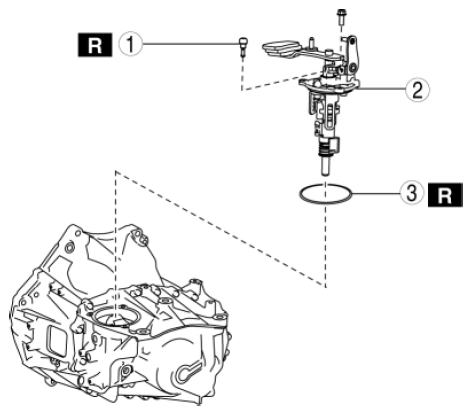

  10. Remove the shift control module in the order shown in the figure
    Fig 6: Removing Shift Control Module
    G10960976Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Breather
    2 Shift control module
    3 O-ring
