Shift Control Module Removal/Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Verify that the shift control module is in the neutral position.

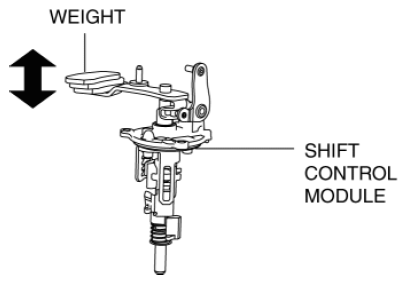

NOTE:
- If the shift control module is in the neutral position, the shift lever with the weight can be moved up and down to a large extent.
Fig 1: Moving Shift Control Module
Courtesy of MAZDA MOTORS CORP.

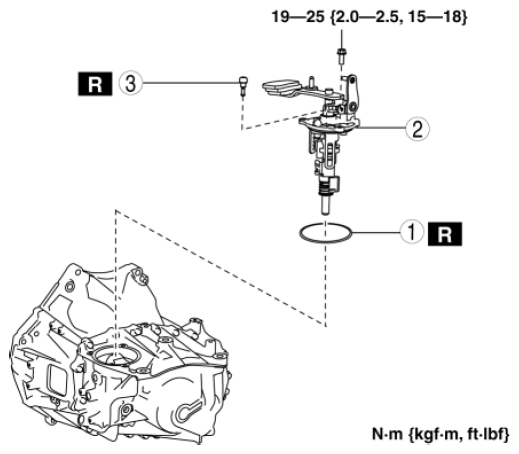

Install the shift control module in the order shown in the figure

Fig 2: Installing Shift Control Module With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

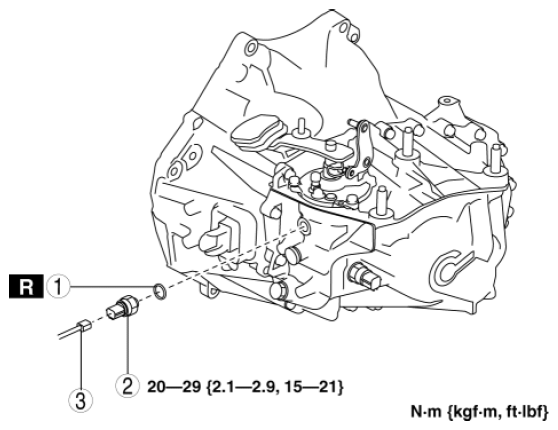

Install the back-up light switch in the order shown in the figure

Fig 3: Installing Back-Up Light Switch

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

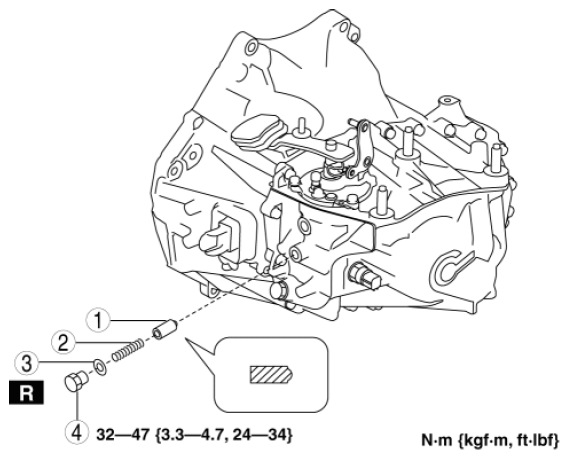

Install the detent ball pin in the order shown in the figure

Fig 4: Installing Detent Ball Pin With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

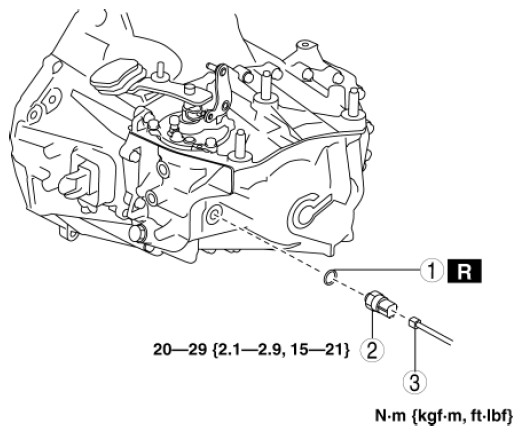

Install the neutral switch in the order shown in the figure

Fig 5: Installing Neutral Switch

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

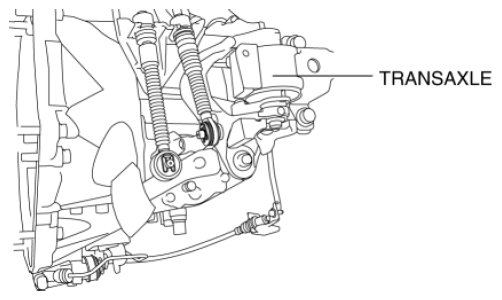

Connect the control cable to the transaxle.

Fig 6: Connecting Control Cable To Transaxle
Courtesy of MAZDA MOTORS CORP.
Make sure that the shift lever can be shifted smoothly.
Install the battery tray and battery. (Refer to BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Install the air cleaner and air hose as a single unit. (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Connect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Install the plug hole plate. (Refer to PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
