Neutral Switch Removal/Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the air cleaner component. (ex: air cleaner, air hose) (Refer to INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.COMPONENT DESCRIPTION

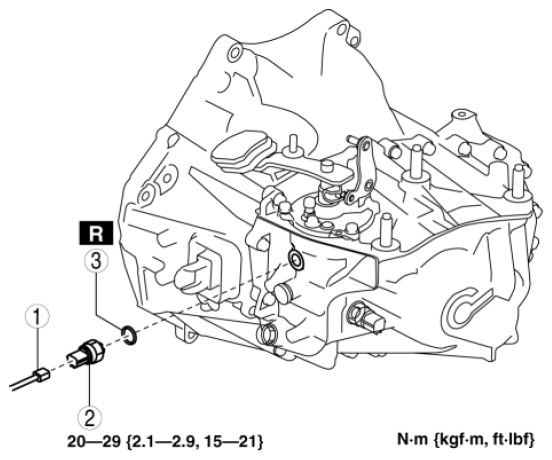

1 Neutral switch connector 2 Neutral switch 3 Gasket
