| DTC U0305:00 |
Vehicle control module (V/C-module) error |
| DETECTION CONDITION |
- When any of the following conditions is met:
- CAN communication line malfunction between vehicle control module (V/C-module) and PCM
- Vehicle control module (V/C-module) internal malfunction
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA (Mode 2)/Snapshot data is not available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
Not applicable |
| POSSIBLE CAUSE |
- CAN drive error (instrument cluster or PCM)

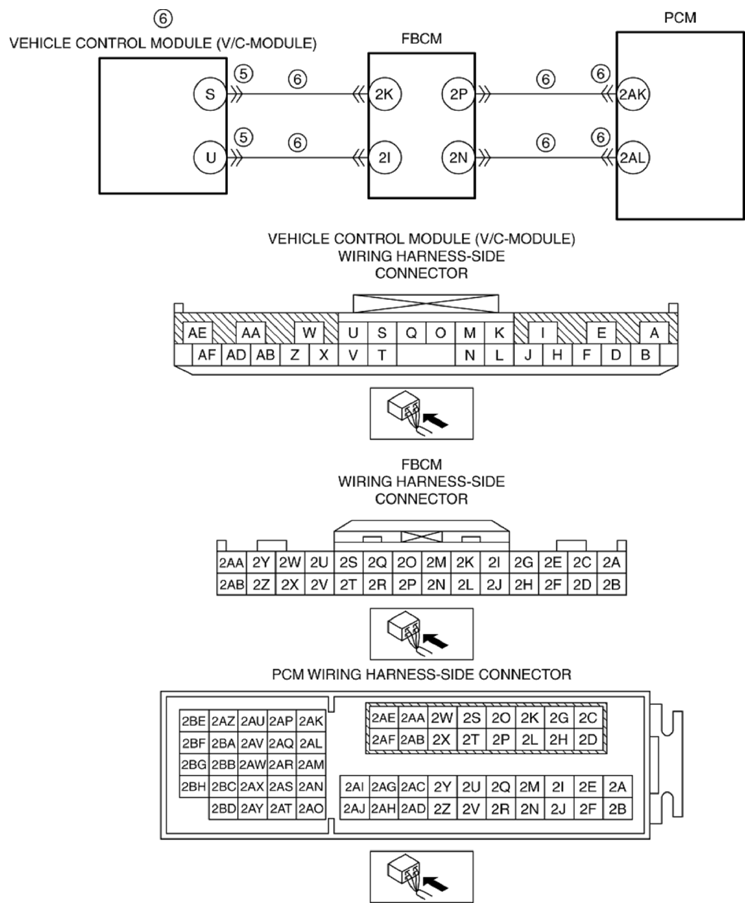

- CAN communication line malfunction between vehicle control module (V/C-module) and PCM
- Vehicle control module (V/C-module) terminal S-Front body control module (FBCM) terminal 2K
- Vehicle control module (V/C-module) terminal U-Front body control module (FBCM) terminal 2I
- Front body control module (FBCM) terminal 2P-PCM terminal 2AK
- Front body control module (FBCM) terminal 2N-PCM terminal 2AL
- Front body control module (FBCM) malfunction
- Vehicle control module (V/C-module) connector or terminals malfunction
- PCM connector or terminals malfunction
- Vehicle control module (V/C-module) malfunction
- PCM malfunction
|
|
|
